VEGA II

CAMBRIDGE ROLLERS

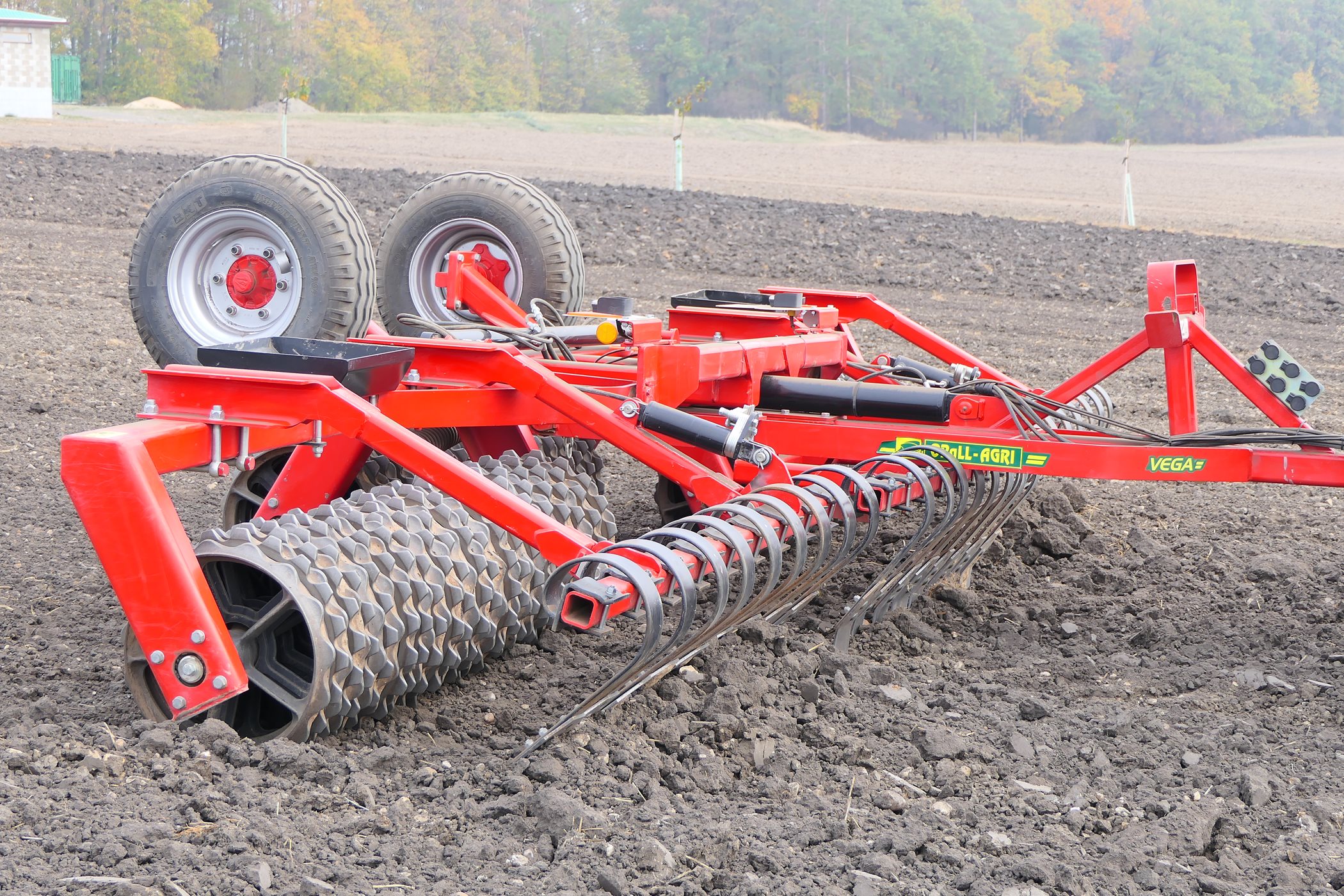

VEGA II Cambridge rollers can be used to press the soil after sowing, if using spring levelling tines (crossboard) the machine can also be used to level the rough furrow for soil preparation before sowing.

Product description

VEGA II Cambridge rollers can be used to press the soil after sowing, if using spring levelling tines (crossboard) the machine can also be used to level the rough furrow for soil preparation before sowing. The large diameter of the rollers combined with the quality of cast iron ensures a long service life and a high utility value. VEGA II is characterized by a comfortable, fully hydraulically controlled folding* into and out of the working position. The machines are manufactured in working widths of 3**, 6.3 and 8.3 m and can also be equipped with a seed spreader for intercropping. * Except VEGA II 3. ** In the 3 m range the machine cannot be fitted with the seed spreader for intercropping.
  1. Drawbar
  2. Frame
  3. Tamping roller
VEGA II
VEGA II

main advantage of the machine

High-quality cast iron wheels, which were developed in collaboration with academics, ensure a long service life even in stony environments. Simple fully hydraulic unfolding of the machine ensures maximum operational comfort. The machine is the optimal solution for soil moisture control after sowing.



Why OPaLL-AGRI VEGA II ?

1

Tradition of agricultural machinery production since 1995

Disc harrows combine years of experience with the use of modern production technologies
2

Precise processing to the smallest detail

High-quality processing ensures your long-term satisfaction and precision work
3

Cast iron wheels with a special profile

The wheel profile was developed in collaboration with experts for endurance even in the toughest conditions
4

A five tears as protection against bursting

The reinforcement of the wheels with 5 tears, ensures the reinforcement of the wheel impacts with stones
5

Hydraulic folding into working position

For maximum comfort, the unfolding is fully hydraulic
6

Shaft diameter is 65 mm

Sufficiently dimensioned cambridge cylinder shaft ensures strength during work and transport
7

Possibility of aggregation of smooth rollers

Using smooth rollers, you can trim meadows and emerging vegetation
8

Hydraulically operated flexible shear

Flexible shear can be used for pre-sowing preparation and treatment of meadows and pastures
9

The parking leg

For comfortable connection, a height-adjustable parking leg is located on the machine

VEGA II

The new range of VEGA II cambridge cylinders has a wide range of usage. Cambridge Vega II rollers are supplied in two shots and allow the use of a crossboard (skid) to pull off the rough furrow and crush the clods to prepare the soil before sowing. The cylinders are equipped with five-spoke wheels made of high-quality cast iron with a reinforced profile, which ensure a long service life. Rollers are fully hydraulically decomposable, which allows for quick disassembly and assembly of the machine.

Equipment

Basic equipment

  • Working widths 3 6.3  8.3
  • Cast-iron cambridge rollers
  • Fully hydraulically foldable
  • Cast-iron wheels:
    • 5 spoke wheel with reinforced profile
    • smooth wheel 530 mm, toothed wheel 550 mm
    • cast-iron GG25, shaft diameter 65 mm
  • Can be combinated with the crossboard flexible levelling tines
  • Lighting

Additional equipment

  • crossboard
  • APV seed spreader holder
  • ⌀ 560 mm smooth roller
Variation – crossboard
Variation – APV seed spreader holder
Variation – ⌀ 560 mm smooth roller

Technical parameters

Technical parameters VEGA II 3 mounted VEGA II 6,3 VEGA II 6,3 crossboard VEGA II 8,3 VEGA II 8,3 crossboard
Working width [m] 3 6,3 6,3 8,3 8,3
Tractor output [hp] 50 80 120 120 150
Weigh [kg] 1250 3400 3900 4450 5100
